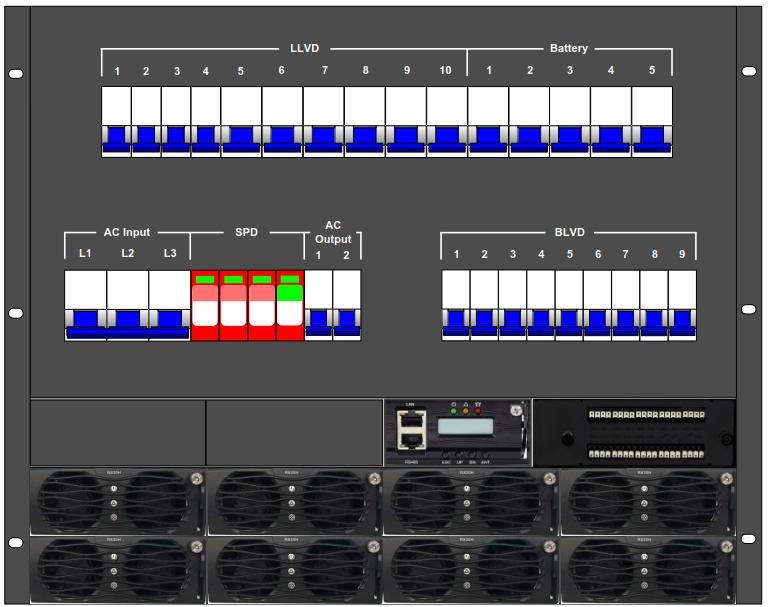

9U Compact system
24kW 48VDC
Description：
Input Voltage： 380VAC (Three-phase)
Input Voltage Range: 85 ~ 300VAC
(reduced output power below 176V)
Frequency Range: 45 ~ 65 Hz
Power Factor: > 0.99(above 75% load)
Peak Efficiency: > 96% peak
DC Distribution:
Output DC Voltage： -48VDC
Output Voltage Range: -42~-58VDC，Rated: -53.5VDC
Output power: 24kW
Output current: 400A
Dimensions(W*H*D：482.6mm(19 inch),400.05mm(9U),350mm.
